CSE260 - Parallel Computing Portfolio

Table of Contents

Overview

CSE260 delves into the principles and practices of High-Performance Computing (HPC), emphasizing parallel programming paradigms to solve computationally intensive problems efficiently.

Key Topics Covered:

CPU Vectorization: Leveraging vector extensions for parallel computation on CPUs.
CUDA Programming: Utilizing GPU architectures for accelerated computation.
MPI (Message Passing Interface): Implementing distributed memory parallelism.

Thanks to Prof. Chin, I learned a lot from this course by praticing in the projects and analising the reasons behind the experiments’ results

Project 1: Optimizing Matrix Multiplication with CPU Vectorization

In this project, we optimized matrix multiplication by leveraging CPU vector extensions such as Intel’s AVX and ARM’s SVE to enhance computational throughput.

Techniques Employed:

Cache Blocking: Divided matrices into smaller blocks to fit into the CPU cache, reducing memory access latency.
Vector Intrinsics: Utilized vectorized instructions to perform multiple operations per cycle, enhancing performance.
Memory Alignment: Ensured data structures were aligned in memory to prevent performance penalties due to misalignment.

Outcomes:

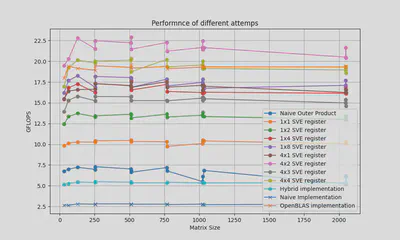

Achieved significant performance improvements, with computation speeds exceeding 20 GFLOPS on ARM Neoverse V1 architecture.

Project 2: Accelerating Matrix Multiplication with CUDA

This project focused on implementing matrix multiplication on NVIDIA GPUs using CUDA to exploit massive parallelism and achieve high computational throughput.

Approach:

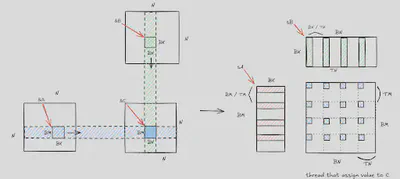

Tiling and Shared Memory: Implemented tiling strategies to load matrix sub-blocks into shared memory, minimizing global memory access.
Thread Synchronization: Managed synchronization among threads to ensure correct data handling during computation.
Loop Unrolling: Applied loop unrolling techniques to reduce loop overhead and increase instruction-level parallelism.

Results:

Achieved performance exceeding 4 TFLOPS on NVIDIA T4 GPUs, demonstrating the effectiveness of GPU acceleration for matrix computations.

CUDA Performance Graph Placeholder

Project 3: Distributed Wave Simulation with MPI

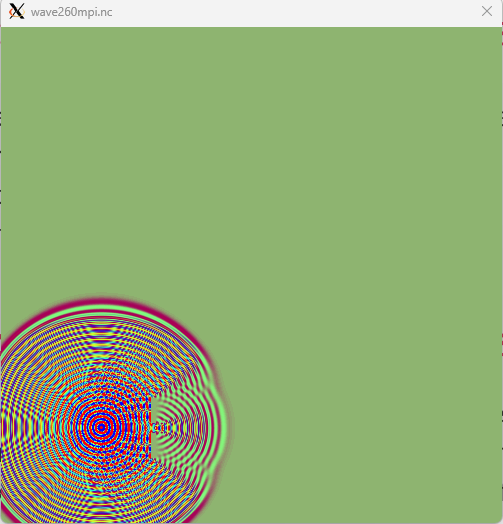

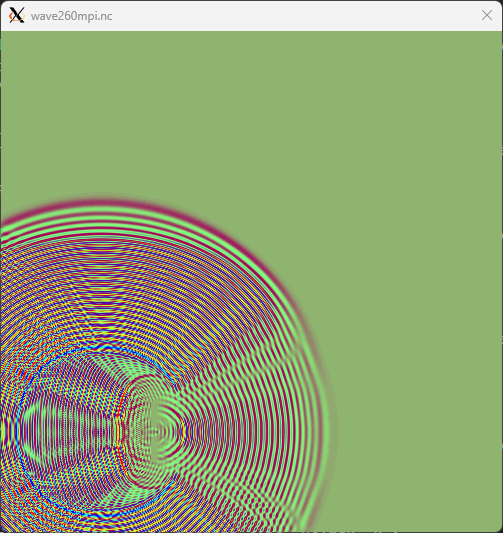

In this project, we developed a wave propagation simulation using MPI to distribute computations across multiple processors, enhancing scalability and performance.

Methodology:

Domain Decomposition: Partitioned the simulation domain among processors to balance computational load.
Non-blocking Communication: Employed MPI’s non-blocking communication routines to overlap computation with data exchange, reducing idle times.
Boundary Management: Implemented ghost cell exchanges to handle boundary conditions between adjacent partitions.

Achievements:

Maintained strong scaling efficiency above 95% up to 16 cores, indicating effective parallelization.
Demonstrated minimal communication overhead in weak scaling tests, showcasing good scalability for larger problem sizes.

MPI Scaling Graph Placeholder

Reflections and Future Work

Key Learnings:

Effective utilization of parallel programming paradigms can lead to significant performance enhancements in computational applications.
Understanding hardware architectures is crucial for optimizing software performance, particularly in HPC contexts.

Future Directions:

Explore advanced optimization techniques such as asynchronous computations and dynamic load balancing.
Investigate the integration of multiple parallel programming models to leverage the strengths of each.
